Outboard | Transom Ht. | Remote Model | Tiller Included | iST- Electronic Shift & Throttle | Electric Start | Charging System | Prop Included | Power Thrust | Power Tilt & Trim | Gas Assist |
---|---|---|---|---|---|---|---|---|---|---|
BF25 | 20" | X | X | 10A | X | X | ||||
BF25 | 20" | X | X | 10A | X | X | ||||
BF25 | 15" | X | X | 10A | X | X |
Reliable, efficient 4-stroke design
World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.
Increased Displacement For More Power
The BF25 and 30 have the largest displacement in their class, at 552 cc (33.7 cubic inches). This provides more torque in midrange operation.
Center Mount Tiller - Easier control
The ergonomically designed tiller handle is longer for improved handling. Adjustments for throttle and steering friction allow easier control. Up front shift lever, PTT switch, and engine alert lamps provide added convenience.
True 5 Warranty
Honda's True 5 Warranty is the best in the business. This transferable, non-declining warranty is the same on the first day as it is on the last.
3 to 3 Induction - better response and performance
3 to 3 induction provides smooth, quiet operation, along with instant throttle response and performance. A compact 3-cylinder, 3-carburetor design utilizes one carburetor per cylinder. This design is more responsive than competitive throttle bodies with long intake runners.
PGM Ignition - optimizes performance
A reliable microprocessor accurately controls ignition timing during start-up and across the entire RPM range, providing optimum overall operation.
Auto Start Enrichment - easy starts
Auto Start Enrichment acts as an automatic choke. Just like a fuel injection system, it automatically adjusts the air/fuel mixture for quick, easy starting and warm-up.
4-Front Corrosion Protection System - Fights the elements
A patented, "Double Sealed" multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof connectors, all enhance corrosion protection.
Easy Maintenance
The port-mounted oil filter and oil fillers simplify maintenance. Easy "screw-type" valve adjusters require no shims, reducing maintenance costs.
Non-Linear Mounting System - smoother operation
Patented non-linear rubber mounts provide smoother operation at all engine speeds.
3 Inlet Cooling - better performance
Provides plenty of water to maintain optimum engine temperature in all conditions.
Engine Alert System - Keeps you informed
Audio and visual cues combine with RPM reduction circuits to alert the operator of overheating, low oil PSI and over-revving to prevent engine damage.
Forced Air Ventilation - better performance and durability
Unique air intake on the top of the cowl allows cooler air to enter and warmer air to escape. The ventilation system reduces under-the-hood operating temperature, improving performance and long-term durability of the electrical components.
Positive Lubrication - better durability
A crankshaft-driven, automotive-style trochoid oil pump ensures long-term durability of critical engine components.
Ultra Low 3 Star CARB Emissions
Environmentally conscious technology. All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board's standards.
Regulated Charging System - more power
A rectifier/regulator is standard on both manual and electric-start models. On manual models, you have the convenience of 4 Amps to charge the battery, and on electric-start models, a high-output 10 Amp system.

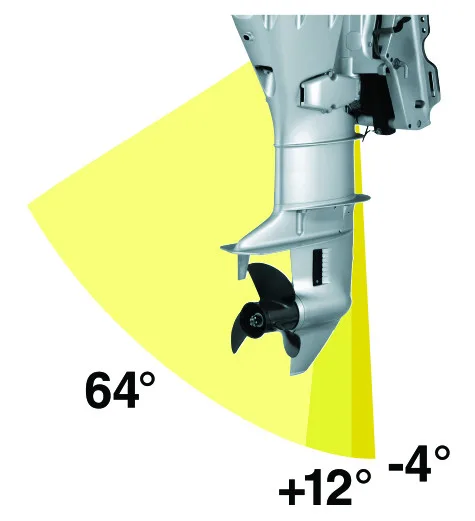

Power Trim/Tilt - easy and convenient
Allows user to trim the unit for maximum performance and handling.
Trim Range: - 4° to +12°
Tilt Range: 64°
Gas Assist Tilt - easy and convenient
Acting much like a pressure strut on a car's trunk lid, the gas-filled cylinder makes it easy to tilt the engine for running in shallow water, or to raise it completely out of the water for protection.
Forward Mounted Shift Lever - easy access
Provides easy access to the forward-mounted controls.
Built-In Pitot Tube
Built-in pitot tube in the gear case eliminates the need to drill holes in your boat for installation.
Available in both 15 and 20 inch shaft models
Engine |
|
Type | 4-Stroke SOHC 3 Cylinder - 2 Valves/ Cyl. |
Displacement | 552 cc (33.7 cubic inches) |
Bore & Stroke | 61 mm x 63 mm (2.4 x 2.5 inches) |
Full Throttle RPM Range | 5,000-6,000 RPM |
Rated Power | 30 HP @ 6,000 RPM |
Cooling System | Water Cooled |
Fuel Delivery | 3 Carburetors |
Ignition System | PGM-IG |
Starting System | Electric |
Exhaust | Through Hub |
Lubrication | Wet Sump |
Trim Range | -4° to +12° |
Tilt Range | 64° |
Drive |
|
Gear Ratio | 2.08:1 |
Gear Shift | F-N-R |
Equipment |
|
Alternator with voltage regulator (Electric Start) | 10-Amp (126 watt) |
Propeller | 3-Blade Aluminum |
Diameter x Pitch | 9? x 12 inches |
Power Tilt | NA |
Power Trim & Tilt | Available |
Gas Assisted Tilt | Available |
Oil Pressure Alert | Standard |
Temperature Alert | Standard |
Rev-Limiter | Standard |
Dimensions |
|
Overall Width | 375 mm/14.8 inches |
Transom Height |
|
S Type | 381 mm/15 inches |
L Type | 508 mm/20 inches |
Dry Weight |
|
S-Type | 70.5 kg/155 lbs. |
L-Type | 72.5 kg/160 lbs. |
Spec |
|
Transom Ht. | 20" |
Remote Model | X |
Tiller Included | |
iST- Electronic Shift & Throttle | |
Electric Start | X |
Charging System | 10A |
Prop Included | X |
Power Thrust | |
Power Tilt & Trim | X |
Gas Assist |
